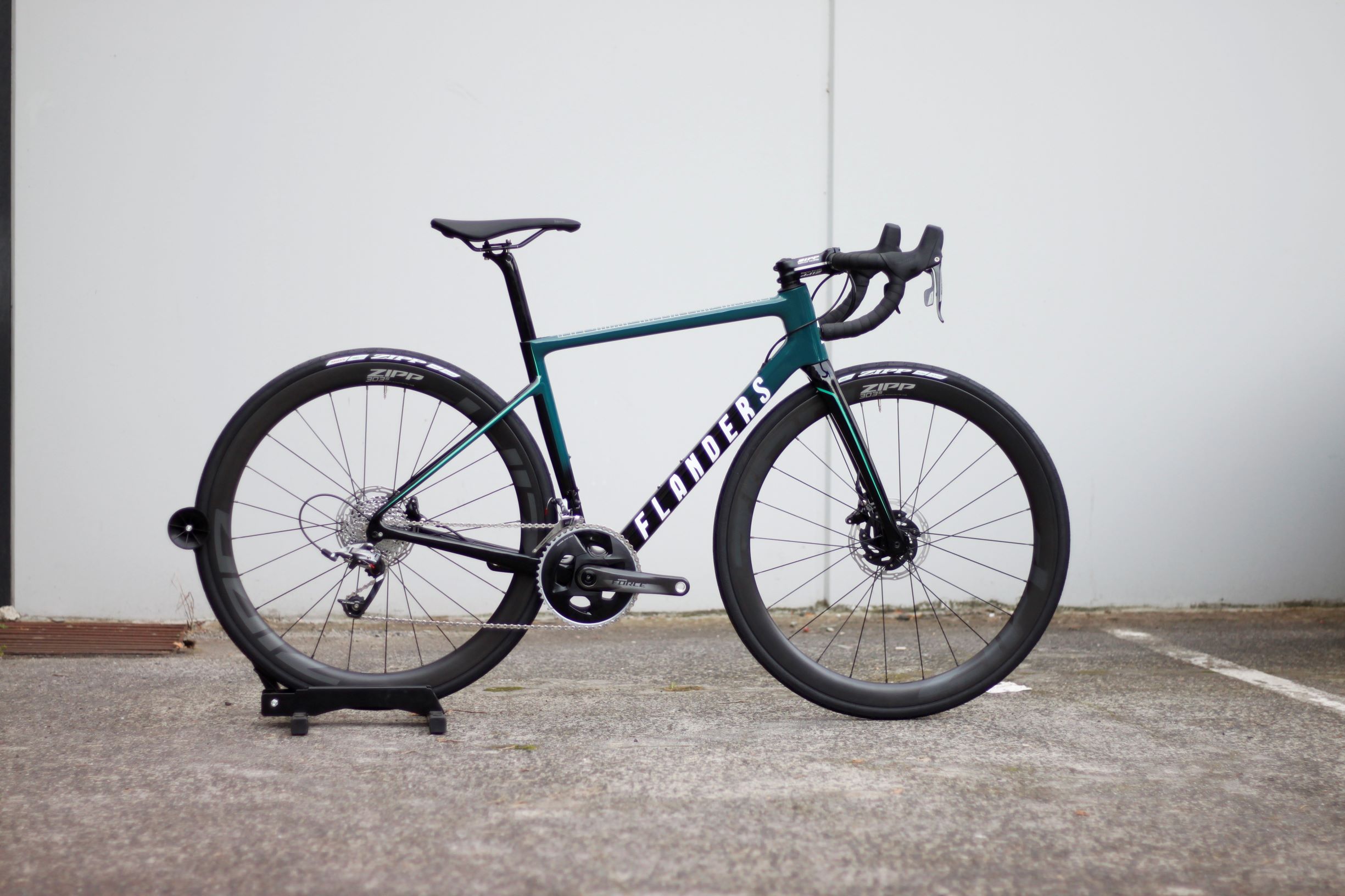

Zero Frame
$ 1,995.00
[xyz-ips snippet=”shippingcalc”]
Description
The Flanders Zero is a complete new model for 2019-20. Embracing all the new technology from our Forte Cyclocross bike. Resulting in some major changes from our previous Razor 4.0. Including a refined carbon lay-up shaving 300g and a new monocoque fork which has shaved a further 100g while maintaining stiffness and ride quality. Our 54cm frame weight is 800g and fork is 300g. Major changes include switching to flat mount disc brakes which make for superior braking in all weather conditions. We run 160mm rotors front and back to maximise braking power while maintaining tyre traction. We have adopted thru axle 100x12mm front and 142x12mm rear to increase lateral stiffness and because of the safety benefits and reliability when coupled with disc brakes. Complete internal cable routing makes for a clean design and will maintain optimal gear shifting in adverse condition. We have also increased our sizing option 48, 51, 54, 56, 58 . Along with all these changes we still offer a custom build which includes stem, bar and crank options at no extra charge. All of our build options come with tubeless wheels. While still offering SRAM Force 22, Force AXS and Red AXS group set options. This year we are also offering SRAM Force1 1x drive system with wide range cassettes to give a cleaner simple drive system.
Specifications and Custom Options
| Frame: | Uni directional monocoque carbon frame, full carbon monocoque fork, fully integrated gear and brake cables, tapered head tube (1 1/8 ” – 1 1/2”), 160mm front and 160mm rear disc brake rotors, 100x12mm front axle, 142x12mm rear axle, maximum 28c tyre clearance, race refined geometry | ||
| Frame Sizes: | 48cm, 51cm, 54cm, 56cm, 58cm | ||
| Frame Colour: | Grey/Black/Turquoise | ||
Geometry
| Size (cm) | 48 | 51 | 54 | 56 | 58 |
|---|---|---|---|---|---|
| Seat Tube (mm) | 450 | 480 | 510 | 530 | 550 |
| Effective TT (mm) | 508 | 524 | 542 | 561 | 581 |
| Head Tube (mm) | 127 | 146 | 166 | 186 | 208 |
| Head Tube (deg) | 70.8 | 71.3 | 72 | 72.5 | 73 |
| Seat Tube (deg) | 74.9 | 74.3 | 73.9 | 73.5 | 73 |
| BB Drop (mm) | 75 | 75 | 73 | 73 | 70 |
| Chainstay (mm) | 405 | 405 | 405 | 405 | 405 |
| Reach (mm) | 362 | 370 | 378 | 386 | 394 |
| Stack (mm) | 528 | 549 | 570 | 590 | 611 |
| Wheelbase (mm) | 971 | 981 | 986 | 995 | 1005 |
| Fork Length (mm) | 368 | 368 | 368 | 368 | 368 |
| Fork Offset (mm) | 45 | 45 | 45 | 45 | 45 |
